Low profile entrance matting with open draining construction.  Suitable for areas subject to heavy water flows over drained mat wells.

Key Features

  • All the features of our most popular Alumat 10 I matting, with open draining channels
  • Can be used both inside and exterior situations
  • Ramping options available
  • Compatible with other Alumat 10 series mats, including 10I, 10D, 10 W, and 10WD
  • Exceeds Fire Safety requirements

Alumat 10DO is covered by our standard 5 year wear warranty.

Mat Overview

Alumat 10DO is a shallow entrance mat ( just 8 – 10mms).  The key difference to other low profile mats is10DO is open draining, usually installed over a drain strip or grating, enabling surface water to be channelled under the mat to a drainage system.  For further information see “Alumat Drainage Installation Guide”.


Download and add to your design library.
(PDF, 0.4MB)

Technical Drawings

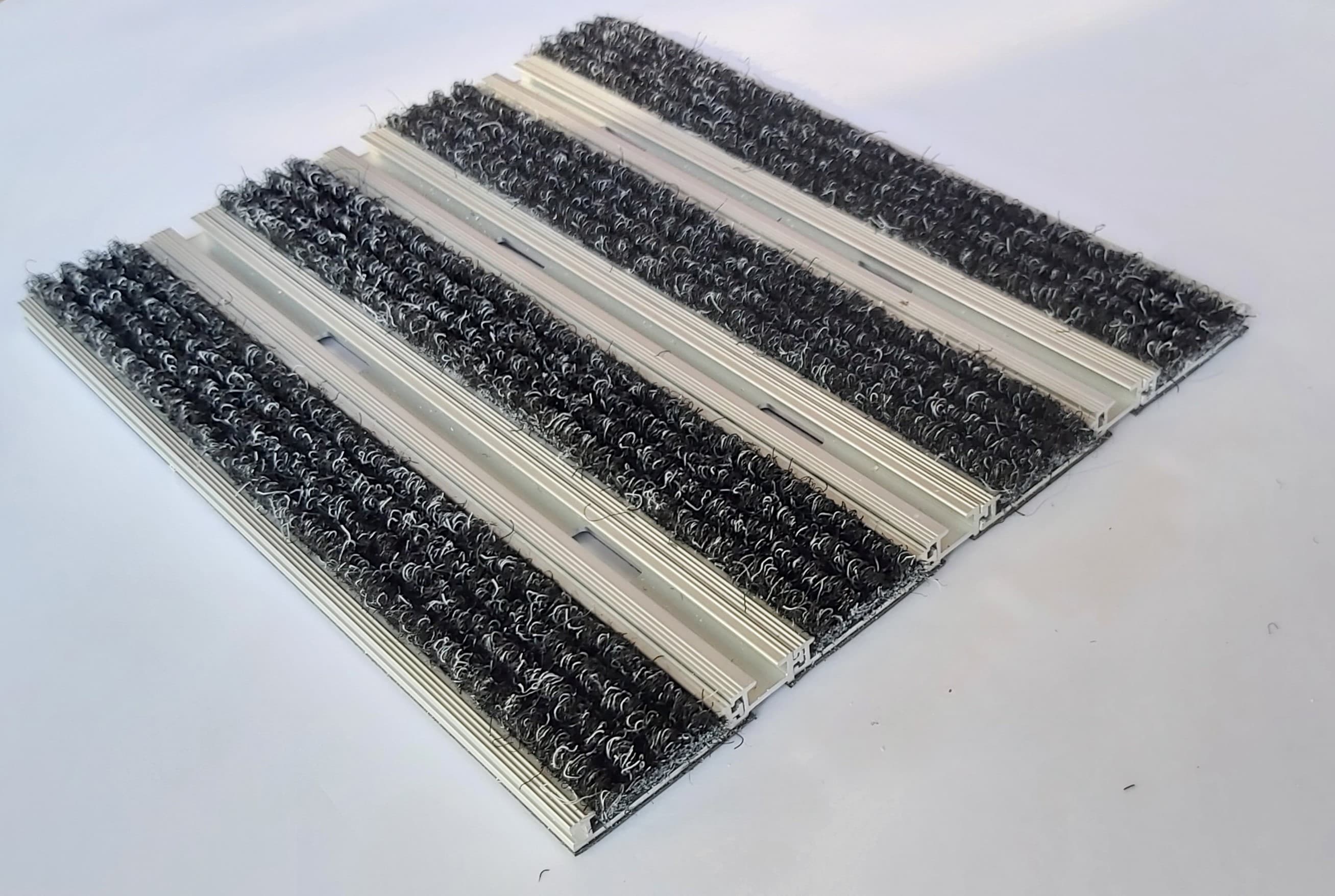

Alumat 10 DO Series

Height 10mm
Weight 8.9 kg/sq m
Construction Interlocking
Profile Width 52mm
Infill Width 28mm
Infill Width % 54%
Location Inside or outside
Crush Resistance 1,000 kg/sq m
Fire Resistance ISO9239-1 compliant

Infill Options
